Scarico Sportivo GPF-Back 76mm Toyota Yaris GR MK2 / Gen 2 – HKS Super Turbo Muffler Catback

Descrizione

Lo scarico HKS Super Turbo per Toyota Yaris GR Gen.2 (restyling) si monta senza modifiche al filtro antiparticolato (OPF) per offrire un sound aggressivo sotto carico ma relativamente confortevole a velocità costante grazie alle camere di risonanza centrali. Realizzato in acciaio inox S304 di alta qualità, questo scarico da 3″ / 76 mm presenta terminali da 110 mm con finitura in titanio che si integrano perfettamente con il diffusore posteriore di serie. Perfetto sia per la configurazione OEM che per potenze fino a 600 CV, questo sistema di scarico HKS combina un’eccezionale qualità costruttiva, un sound unico e un look straordinario!

–

Montaggio diretto

Acciaio inossidabile S304 al 100%.

3″ / 76 mm di diametro

terminali con finitura in titanio da 110 mm

Livello di rumorosità: 91 dB (al minimo)

Kit di montaggio incluso

Istruzioni di montaggio incluse

Prodotto in Giappone

– Non compatibile con la Gen.1, vedere 31029-AT006 –

Remarks

Compatible with AT and MT. Not compatible with vehicles with 17-inch wheels or rear constant speed differentials. Cannot be installed on Gen 1 vehicles









---



●Performance comparison





• The maximum values ​​for both power and torque exceeded the stock system
• When measuring the power output, we also measured the exhaust pressure (*). As the engine speed increased, the difference became larger, confirming a significant reduction in exhaust pressure.
• With improved exhaust efficiency, making a muffler that will show its true value in further tuning!!



Power/ Torque maximum value



Notes regarding the notations in the graph and table:
STM: Super Turbo Muffler 31029-AT017 (used for testing)

• Exhaust pressure is measured between the spherical flange and the middle silencer.
• The output gain with this product is calculated based on values under the stock ECU control.
• Graphs and figures are the results of in-house testing. They may vary depending on the vehicle and measuring equipment.



Test Vehicle: GR Yaris 4BA-GXPA16
Vehicle Specs: Super Turbo Muffler　31029-AT017
(All other parts were stock)

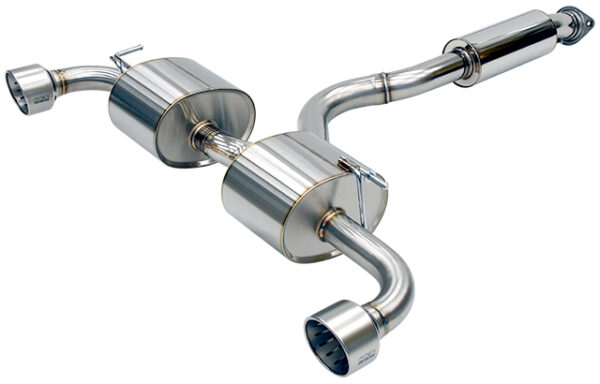

●Appearance & Layout Comparison

31029-AT018

The knowledge cultivated through the development of the previous gen GR Yaris and GR Corolla has been fully utilized!



• This product was developed based on data accumulated from the development of the earlier gen GR Yaris and GR Corolla, and the optimal layout, including silencer configuration and pipe length, was derived.
• It controls unpleasant low tones and reduces muffled noise inside the car at normal RPMs, while producing a sporty sound making it clear that you have changed the muffler!
• The rich low tones have a strong feel, and the sound quality matches the powerful feeling of the GR Yaris.

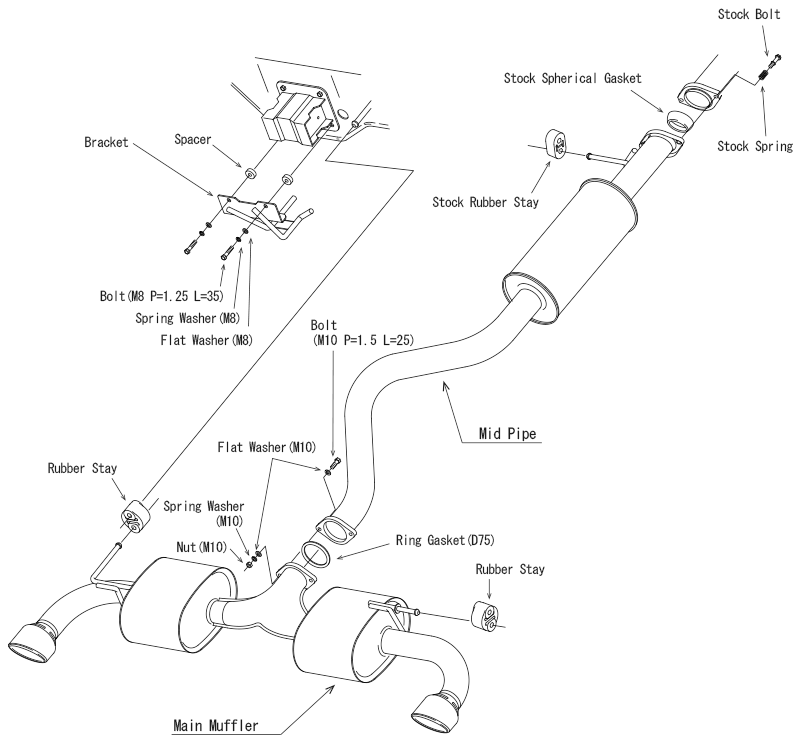

• It has a two-part configuration of an intermediate and a main muffler.



GR Yaris Stock Muffler



• Immediately after the flange the pipe is becomes 70mm
• After the intermediate silencer, it becomes 65mm.
• The silencer is designed to distribute the exhaust to the left and right.
• One piece structure with no divisions.

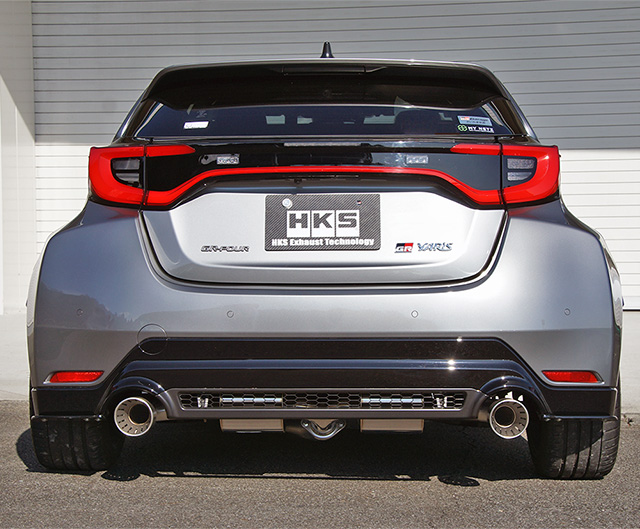

●Appearance comparison

31029-AT018 Super Turbo Muffler  URBAN MATTE EDITION



• The main silencer has a hairline finish, giving it a smooth and elegant texture.
• The tail has a matte finish and is engraved with the HKS logo, giving it a calm impression. This simple yet striking muffler adds a high-quality accent to the rear view of your GR Yaris.
